  • Prosoft MVI69-PDPMV1 PROFIBUS DPV1 Master
    ❤ Add to collection
  • Prosoft MVI69-PDPMV1 PROFIBUS DPV1 Master

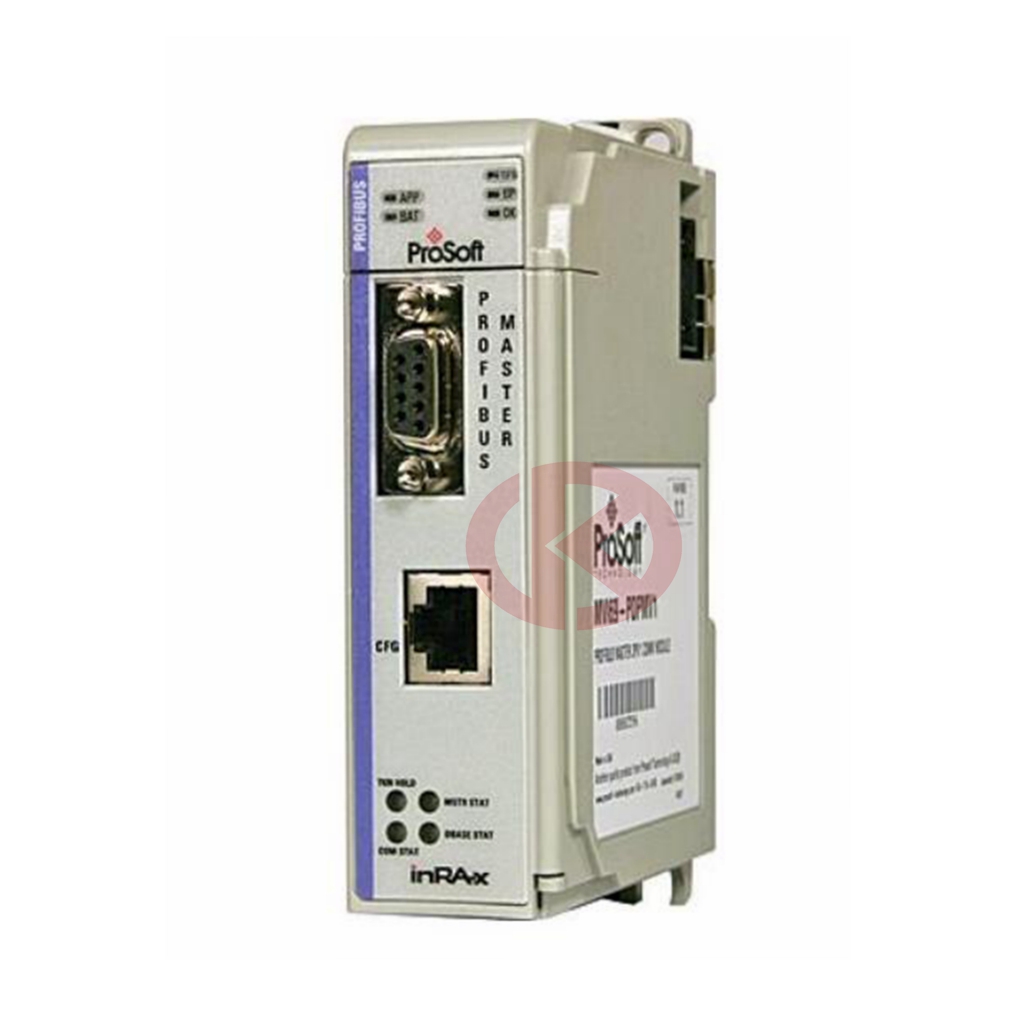

    Prosoft MVI69-PDPMV1 PROFIBUS DPV1 Master

    • U.S.$6859.00
    • Satisfaction:

      Sales: 0

      Review: 0

    • Quantity:
    • (Inventory: 2)



The PROFIBUS DPV1 Master module is a powerful communication interface for Rockwell Automation® CompactLogix / MicroLogix® processors. Developed under license from Rockwell Automation, the module incorporates proprietary backplane technology that enables powerful data exchange with CompactLogix / MicroLogix processors. The module supports complete Master specifications according to IEC 61158. Acyclic parameter data can be transferred with Class 1 or Class 2 DPV1 services, allowing processors to easily communicate with slave devices supporting PROFIBUS DPV0/V1 protocol. The module acts as an input/output module between the PROFIBUS network and the CompactLogix / MicroLogix processor. Data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network.

 Single-slot - 1769 backplane compatible  The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

 Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included

 Configuration data obtained from ProSoft Configuration Builder Software, which defines the PROFIBUS network, and then downloads the configuration to the module using the serial port of the PC

 Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x

Functional Specifications The inRAx PDPMV1 PROFIBUS Master module acts as a PROFIBUS network scanner, transferring input and output data between PROFIBUS devices and processor data memory over the backplane.

 Master Busview configuration interface via included ProSoft Configuration Builder software (Part Number PSW-PCB)

 Project-unique GSD file import library  Monitoring and modification of process data and DPV1 acyclic data

 Multi-drop on a PROFIBUS DPV1 network with other compatible devices

 Automatic project documentation  Automatic Bus Parameter calculation

 Online slave diagnostics

 Supports all standardized baud rates, up to 12 Mbps  Supports extended diagnostic data (DPV1)

 Multiple Masters can be placed in a single rack  CRC checksum determination of slave configuration consistency to processor

 Master Status LED indicators for Operations, Network Communication, Master Token-Hold and Network Configuration

 FDT/DTM PROFIBUS Master transport communication DTM software included (Part Number PSW-CDTM-PDPM) PROFIBUS Master Specifications  Up to 125 slaves can be connected with a repeater  Up to 1536 cyclic bytes input and 1536 bytes output data  Supports Extended Diagnostic Data  RS-485 optically isolated PROFIBUS interface with on board DC-DC converter

 Acyclic communications (DPV1), Read and Write

 Alarm handling (DPV1)  Supports Sync and Freeze commands

 Supports PROFIdrive 3.1 compliant parameter read and write operations

 Supports Multicast and Broadcast telegrams (DPV1) PROFIBUS Master Port

 DB-9F optically isolated RS-485  Ready, Run, Error and Token LED Indicators

 PROFIBUS DPV1 RS-485 interface with a 9-pin D shell female connector and isolated opto-couplers

The MVI46, MVI56, MVI56E, MVI69, and MVI71 modules use a rechargeable Lithium Vanadium Pentoxide battery to backup the real-time clock and CMOS. The battery should last for the life of the module. The module must be powered for approximately twenty hours before the battery becomes fully charged. After it is fully charged, the battery provides backup power for the CMOS setup and the real-time clock for approximately 21 days. When the battery is fully discharged, the module will revert to the default BIOS and clock settings.
