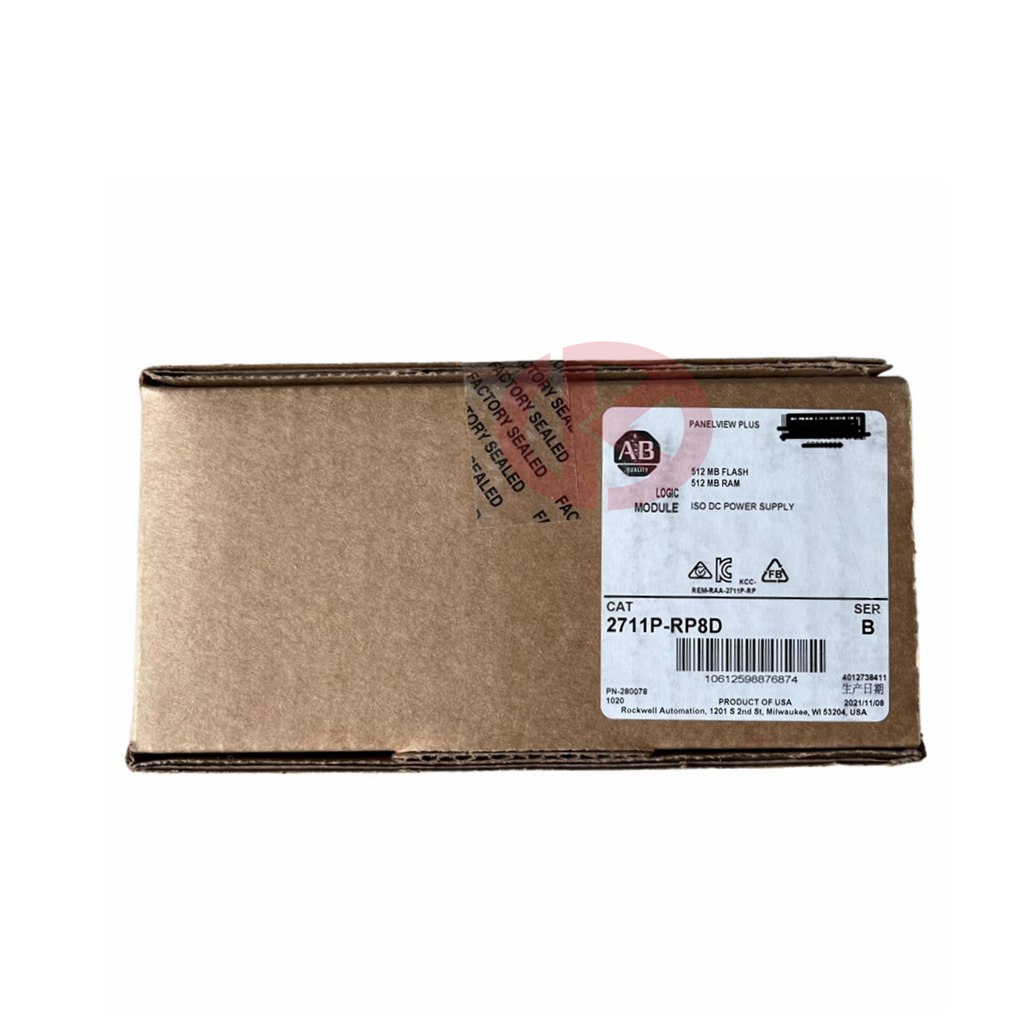

2711PC-RP8D PanelView Plus 6
This chapter gives an overview of the PanelView Plus terminals.
Software support
PanelView Plus 400 and 600 features
PanelView Plus 700 to 1500 features
Catalog number configuration
Product components
The PanelView Plus 400 and 600 terminals are HMI devices that provide these
features:
PanelView Plus 400 terminals
– Color or grayscale graphic displays
– Keypad or keypad and touch screen input support
PanelView Plus 600 terminals
– Color or grayscale graphic displays
– Keypad, touch screen, or keypad and touch screen input
Base-configured unit
– RS-232 only
– RS-232, Ethernet, and modular communications interface
Communication modules provide add-on capability to base-configured
units with a modular communications interface
Power input, AC (85…264V) or DC (18…30V)
CompactFlash card slot supports Type 1 CompactFlash cards
USB port for attaching mouse, keyboard, printer, bar code scanner, and
other devices
Same panel cutouts as the PanelView Standard 550 terminals
2711P-T7C15A1
2711P-T7C4A8
+ 2711P-RN15S
2711P-T7C15A2
2711P-T7C15A6
2711P-T7C4A9
2711P-T7C15A7
2711P-T7C15B1
2711P-T7C4A8
2711P-T7C15B2
2711P-T7C15D1
2711P-T7C4D8
2711P-T7C15D2
2711P-T7C15D6
2711P-T7C4D9
2711P-T7C15D7
2711P-T7C4A1
2711P-T7C4A8
+ 2711P-RN20 provides
additional Ethernet port
2711P-T7C4A2
2711P-T7C4A6
2711P-T7C4A9
2711P-T7C4A7
2711P-T7C4B1
2711P-T7C4A8
2711P-T7C4B2
2711P-T7C4D1
2711P-T7C4D8
2711P-T7C4D2
2711P-T7C4D6
2711P-T7C4D9
2711P-T7C4D7
2711P-T7C4D2K
2711P-T7C4D8K
2711P-T7C4D6K
