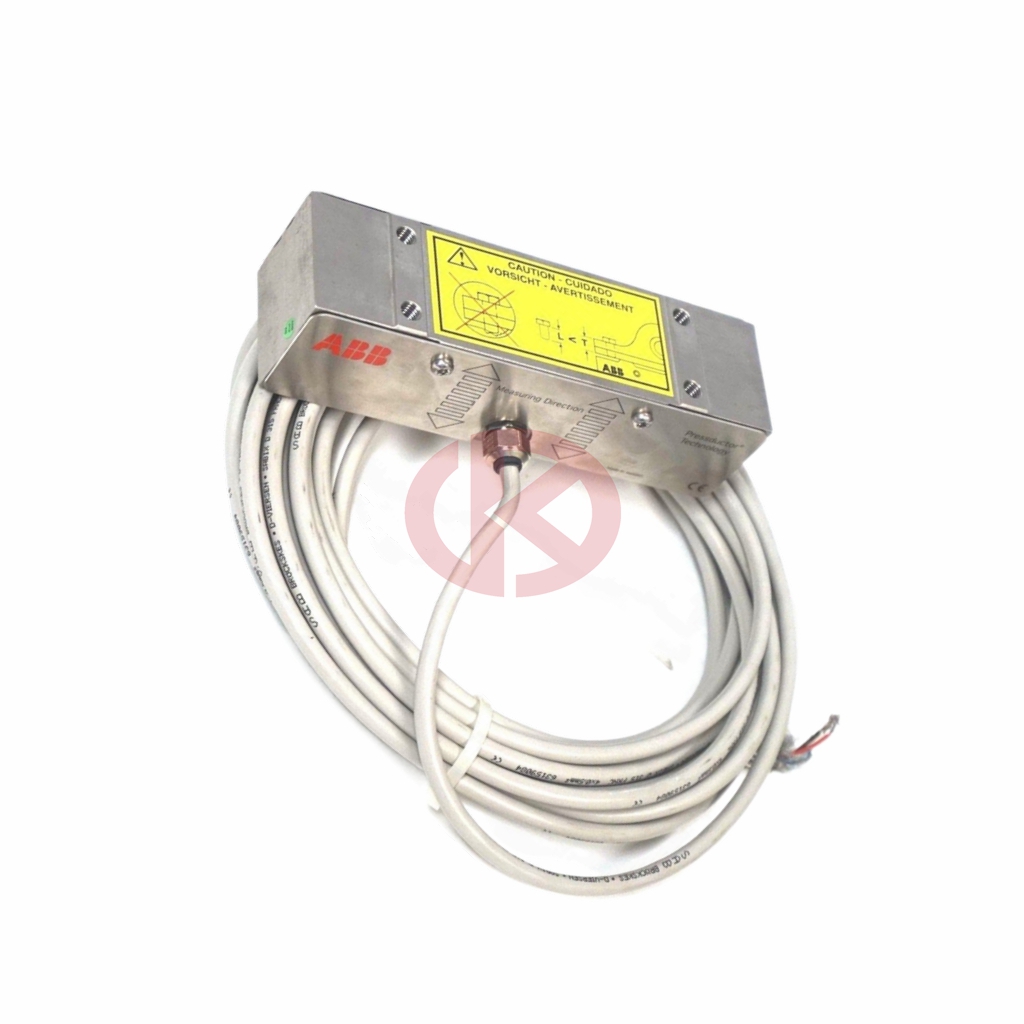

ABB PFCL201C 10KN 3BSE027070R10 Horizontal force measurement
Sensitivity and accuracy
combined with ruggedness
make the PillowBlock ideal
for applications with low
tensions, heavy rolls and
Seven capacity ranges from
0.5 to 20kN / 113 to 4500lbs.
Versions for acid resistant
design available
Ideal for Horizontal force measurement – PFTL 201C/D
accurate and reliable
measurement of wire and
felt tension in paper machines.
Available in five different sizes with
nominal loads from 10kN up to
100kN
Mill-duty version (PFTL201CE/DE)
has enhanced protection with fixed
connection cable and protection hose
ABB PFTL101B 0KN 3BSE004191R1 Pressductor PillowBlock Load cells
ABB PFTL101B 0KNPFTL101B 0KN Pressductor PillowBlock Load cells
ABB PFTL301E 3BSE019050R1000 0kN Pressductor PillowBlock Load
This manual describes load cells PFTL 101A, PFTL 101AE, PFTL 101AER, PFTL 101B, PFTL
101BE and PFTL 101BER in a Pressductor® Tension Measuring System.
The purpose of this manual is to describe the general function and design of the load cells and also
to be a guidance at installation, commissioning, preventive maintenance and fault tracing.
