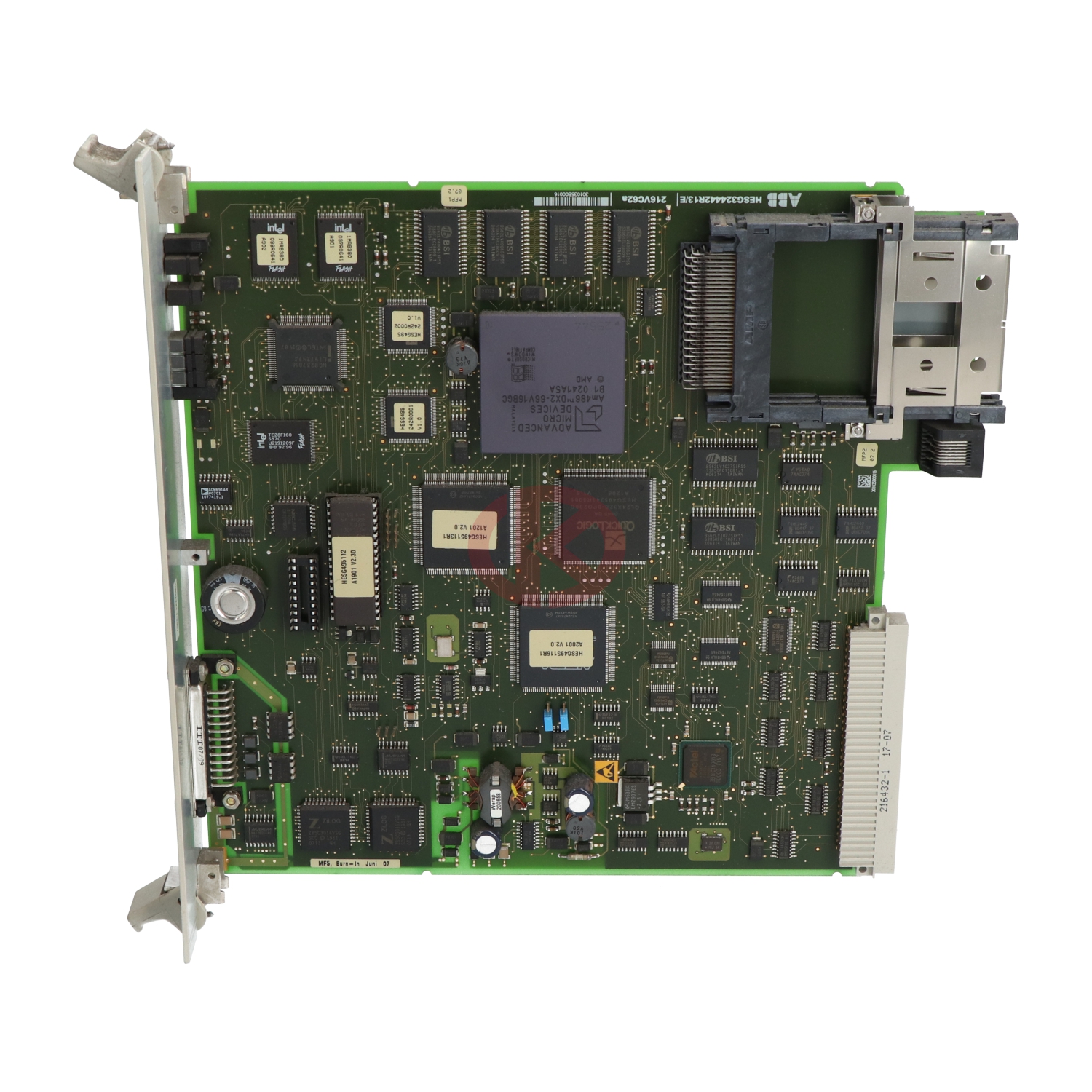

ABB 216VC62a HESG324442R13E HESG324442R112F UNIT

All the available protection and logic functions described in Section

3 are stored as a software module library in the 216VC62a

processing unit. All the user settings for the activated functions

and the configuration of the protection, i.e. assignment of I/P and

O/P signals (channels) to the protection functions, are also

stored in this unit. The software is downloaded using the operator

program.

The protection functions and their associated settings necessary

for a particular plant are selected and stored with the aid of the

portable user interface (PC). Every activated function requires a

certain percentage of the total available computing capacity of

the processing unit (see Section 3).

The processing unit 216VC62a has a computing capacity of

425%.

The 216VC62a is used both as a processor and as an interface

to the interbay bus (IBB) in the substation monitoring system

(SMS) and the substation automation system. The available

communication protocols are:

SPA BUS

LON BUS

MCB interbay bus

MVB process bus.

The SPA BUS interface is always available. The LON and MVB

protocols are transferred by PC cards.

The supply to the memory in the 216VC62a is maintained in the

event of an interruption by a gold condenser so that the event list

and disturbance recorder data remain intact. The disturbance

recorder data can be read via either the interface on the front of

the 216VC62a or the object bus. The data can be evaluated

using the “EVECOM” evaluation program. The internal clock of

the RE. 216 can be synchronised via the object bus interface of

SMS/SCS systems or by a radio clock.

I/P signals (channels) from the B448C bus:

digitised measured variables: primary system currents and

voltages

logic signals: external I/P signals

24 V auxiliary supply and data exchange with the B448C bus.

O/P signals (channels) to the B448C bus:

signal O/P’s from the protection and logic functions selected

tripping O/P’s from the protection and logic functions selected

data exchange with the B448C bus.
