GE 10"/12"QuickPanel View IC754VSI12CTD
IC754VBI10MTD
IC754VGl1OMTD
IC754VSI1OMTD
IC754VB112CTD
IC754VGl12CTD
IC754VSI12CTD
IC754VSI12MTD
IC754VBI12MTD
IC754VGI12MTD
The QuickPanel View is available in different
configurations to suit your requirements. Equally at home in a networked
environment or as a stand-alone unit, the QuickPanel View is the ideal solution for
factory floor HMI.
Powered by Microsoft Windows® CE .NETTM, today’s embedded operating system
of choice, the QuickPanel View provides a fast track for application program
development. The commonality with other versions of Windows simplifies porting
your existing program code. Another benefit of Windows CE is the familiarity of
the user interface, shortening the learning curve for operators and developers alike.
The availability of third-party application software makes this operating system
even more attractive.
The 10"/12" QuickPanel View is an all-in-one microcomputer designed for
maximum flexibility. The design, based on an advanced Intel® microprocessor,
brings together a high-resolution touch-screen operator interface with a variety of
I/O options. With many standard ports and expansion busses from which to
choose, you can connect to most industrial equipment.
The QuickPanel View is equipped with several memory types to satisfy even the
most demanding applications. A 32MB section of DRAM is split between the
operating system, an object store, and application memory. A 32MB section of
non-volatile FLASH memory, functioning as a virtual hard drive, is divided equally
between the operating system and persistent storage for application programs. The
retentive memory consists of 512 KB of battery-backed SRAM for data storage,
ensuring your valuable data will never be lost, even during a power failure.
The many features of the QuickPanel View make it an obvious choice for a world
of applications.Your smart choice will provide reliable operation for years to
come.
In addition to the primary touch screen interface, the 10" or 12" QuickPanel View
supports a variety of communication ports including an expansion bus to allow

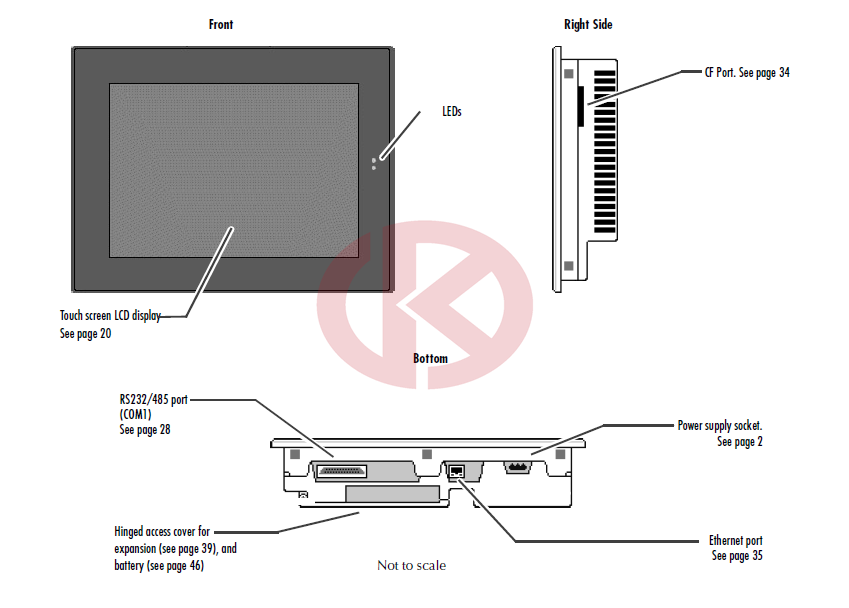

great flexibility in application. The following diagram shows the physical layout of
the QuickPanel View and the locations of ports and connections
The bottom LED is green when power is applied and amber if both backlights fail
(IC754VxI10MTD has one backlight);1 the top LED is tricolor (green, red, or
amber) and programmable.
compact HMI computer available. The QuickPanel View is available in different
configurations to suit your requirements.
environment or as a stand-alone unit, the QuickPanel View is the ideal solution for
factory floor HMI.
Powered by Microsoft Windows CE. NETTM, today’s embedded operating system of
choice, the QuickPanel View provides a fast track for application program
development. The commonality with other versions of Windows simplifies porting
your existing program code. Another benefit of Windows CE is the familiarity of
the user interface, shortening the learning curve for operators and developers alike.
The availability of third-party application software makes this operating system
even more attractive.
The 6" QuickPanel View is an all-in-one microcomputer designed for maximum
flexibility. The design, based on an advanced Intel® microprocessor, brings
together a high-resolution operator interface with a variety of I/O options. With
many standard ports and expansion busses from which to choose, you can connect
to most industrial equipment.
The QuickPanel View is equipped with several memory types to satisfy even the
most demanding applications. A 32 MB section of DRAM is split between the
operating system, an object store, and application memory. A 32 MB section of
non-volatile FLASH memory, functioning as a virtual hard drive, is divided
between the operating system and persistent storage for application programs. The
retentive memory consists of 512 KB of battery-backed SRAM for data storage,
ensuring your valuable data will never be lost, even during a power failure.
The many features of the QuickPanel View make it an obvious choice for a world
of applications. Your smart choice will provide reliable operation for years to
come.
