Motorola MVME2603 2604 VME Processor Modules

♦ PowerPC 603™ or PowerPC 604™ 32-bit microprocessor

♦ L1 cache—16KB/16KB on PowerPC 603, 32KB/32KB on PowerPC 604

♦ 256KB L2 cache

♦ Up to 512MB ECC DRAM using RAM200 memory expansion modules

♦ 8MB on-board Flash, 1MB socketed

♦ 64-bit PCI mezzanine connector

♦ On-board debug monitor with self-test diagnostics

♦ 32/64-bit PMC expansion slot

♦ 2 or 3 async, 1 or 2 sync/async serial ports

♦ Ethernet transceiver interface with 32-bit PCI local bus DMA

♦ 8- or 16-bit Fast SCSI-2 bus interface

♦ Parallel, floppy, keyboard and mouse interfaces

♦ 8KB x 8 NVRAM and time-of-day clock with replaceable battery backup

♦ Four 32-bit timers, one watchdog timer

PMC expansion combined with a high-performance VME processor

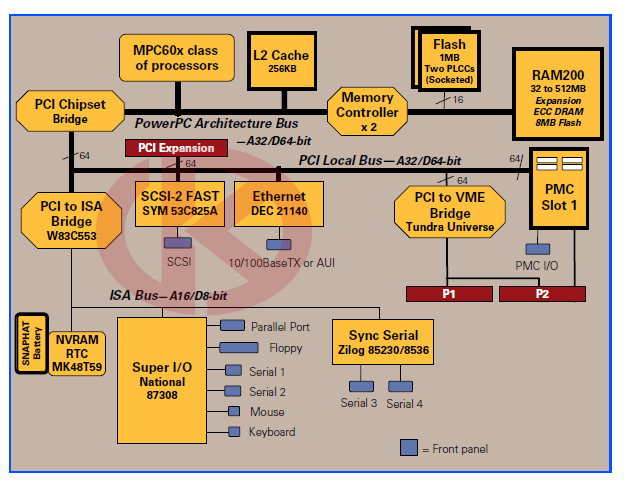

The MVME2600 Series is a family of VME processor modules based on the Motorola PowerPlus VME architecture with PowerPC® microprocessors that push performance and functionality to limits unprecedented on VME. The flexibility of the MVME2600 provides an excellent base platform that can be quickly and easily customized for a variety of industry-specific applications. Designed to meet the needs of military and aerospace, industrial automation, and medical, MVME2600 applies to a variety of applications. DRAM expansion mezzanines enable memory upgrades to the maximum 512MB of ECC DRAM without requiring additional VME slots.

PCI Expansion

MVME2600 modules have a 64-bit PCI connection to support PCI expansion carriers such as Motorola PMCspan. Design details for the connector and electrical specifications are available from your local Motorola representative.

Memory Modules

The MVME2600 series has a modular memory design. Mezzanine arrays support up to 512MB of add-on DRAM. These RAM200 expansion modules allow field upgrades of the memory capacity and do not require additional VME slots.

Transition Modules

Two artwork variants of the MVME2600 are available. One series provides backward compatibility with the MVME712M transition module I/O. The other series accepts the MVME761 transition module that features an additional sync/ async serial port, a 10/100BaseT interface, Fast 16-bit SCSI, and an IEEE 1284 compatible parallel port

MVME2604-4361 333 MHz MPC604e, 256MB ECC DRAM, original VME Scanbe front panel and handles

MVME2604-4471 400 MHz MPC604, 512MB ECC DRAM, original VME Scanbe front panel and handles
