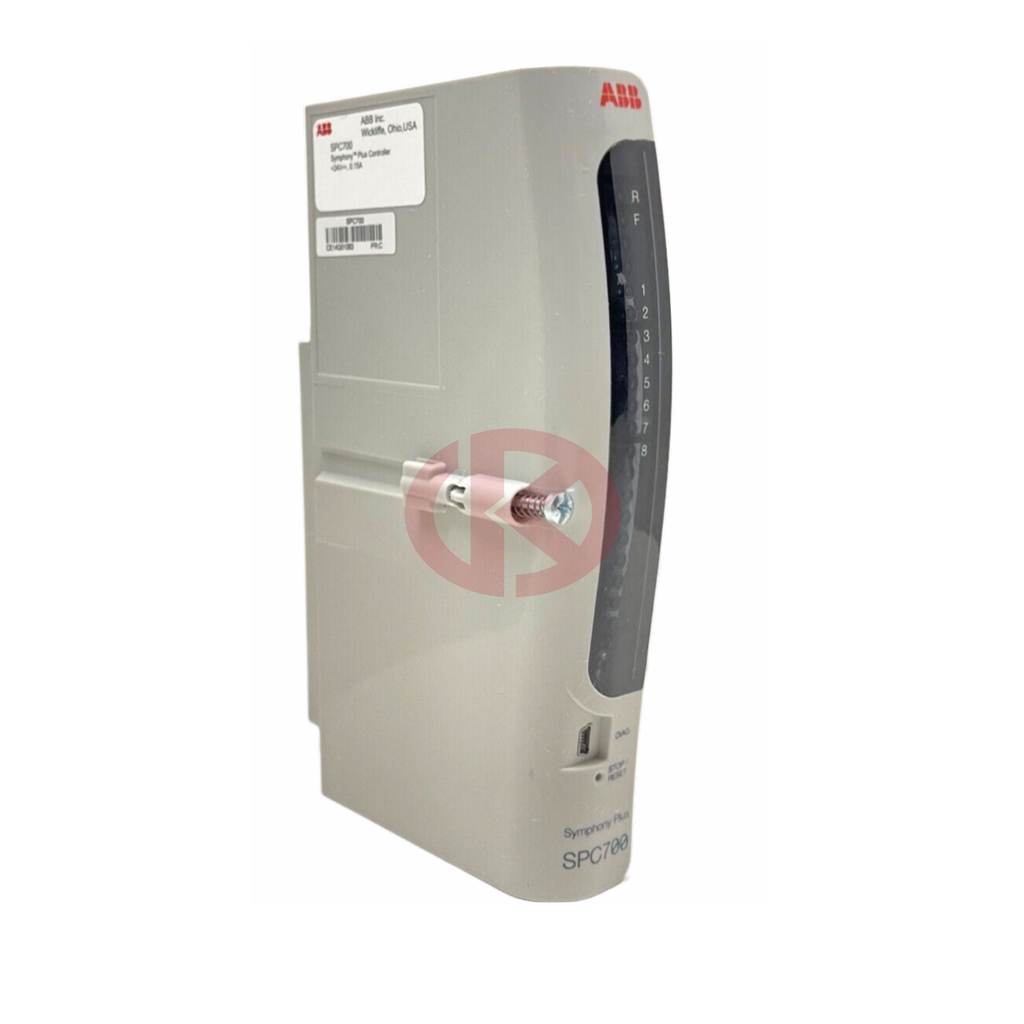

ABB Symphony PluS SD Controller SPC700VK01

SD Series controllers are the latest in a long line of ABB

fi eld-proven process controllers, that includes the HPC800

high-end and SPC700 mid-range application controllers. Based

on a 256 MHz, 32-bit Freescale Coldfi re processor, these

controllers can adapt to a broad spectrum of applications and

process requirements. Confi gured by S+ Engineering,

SD Series controllers feature an extensive library of more

than 150 predefined control algorithms or function codes

(figure 5). These functions enable easy, building block design

of complex control strategies to fit any control application,

including continuous, sequential, batch and advanced

control. In addition to standard function blocks, SD Series

controllers support C programming, batch, and user defined

function codes

ABB Ability™ Symphony® Plus SD Series Control and I/O

Designed for total plant automation for a wide and varied set of process applications, the SD Series features modular DIN rail packaging, a flexible, high-performance Fast Ethernet-based plant network, and intelligent electrical and field device integration via PROFIBUS, HART, IEC 61850, IEC 60870-5-104, DNP 3.0 and Modbus TCP communication protocols. The SD Series also protects investments made in previous controllers, while delivering higher performance, reliability and capacity. From design conception through start-up and commissioning, the SD Series helps reduce project deployment costs by:

• Minimizing DCS and extended support footprint

• Simplifying design complexity

• Compressing project schedules Once in operation, the SD Series lowers total cost of ownership by:

• Increasing process reliability

• Minimizing equipment downtime

• Improving production yields

• Reducing maintenance and support costs

• Reusing physical and intellectual asset investments

• Enabling new products and functions to be added with ease

PN800: fast Ethernet-based plant network

Information

HPC800K01

HPC800 Controller Kit [Non-Redundant]

HPC800K01A

HPC800 Controller Kit, Non-Redundant

HPC800K02

HPC800 Controller Kit [Redundant]

HPC800K02A

HPC800 Controller Kit [Redundant]

SPC700

SPC700 Controller Module

SPC700A

SPC700A Controller Module

SPC700K01

SPC700 Kit, Horizontal, Non-Redundant

SPC700K01A

SPC700 Kit, Horizontal, Non-Redundant

SPC700K02

SPC700 Kit, Horizontal, Redundant

SPC700K02A

SPC700 Kit, Horizontal, Redundant

SPC700VK01

SPC700 Kit, Vertical, Non-Redundant

SPC700VK01A

SPC700 Kit, Vertical, Non-Redundant

SPC700VK02

SPC700 Kit, Vertical, Redundant

SPC700VK02A

SPC700 Kit, Vertical, Redundant

YHC800

HC800 Control Processor Module Repair
