Allen-Bradley CompactLogix System 1769-L Series Control Processor Unit

Allen-Bradley CompactLogix System 1769-L Series Control Processor Unit

1769-L31, 1769-L32C, 1769-L32E, 1769-L35CR, 1769-L35E

1769-L16ER-BB1B, 1769-L18ER-BB1B, 1769-L18ERM-BB1B,

1769-L24ER-QB1B, 1769-L24ER-QBFC1B, 1769-L27ERM-QBFC1B, 1769-L30ER,

1769-L30ER-NSE, 1769-L30ERM, 1769-L33ER, 1769-L33ERM, 1769-L36ERM, 1768-L43,

1768-L43S, 1768-L45, 1768-L45S

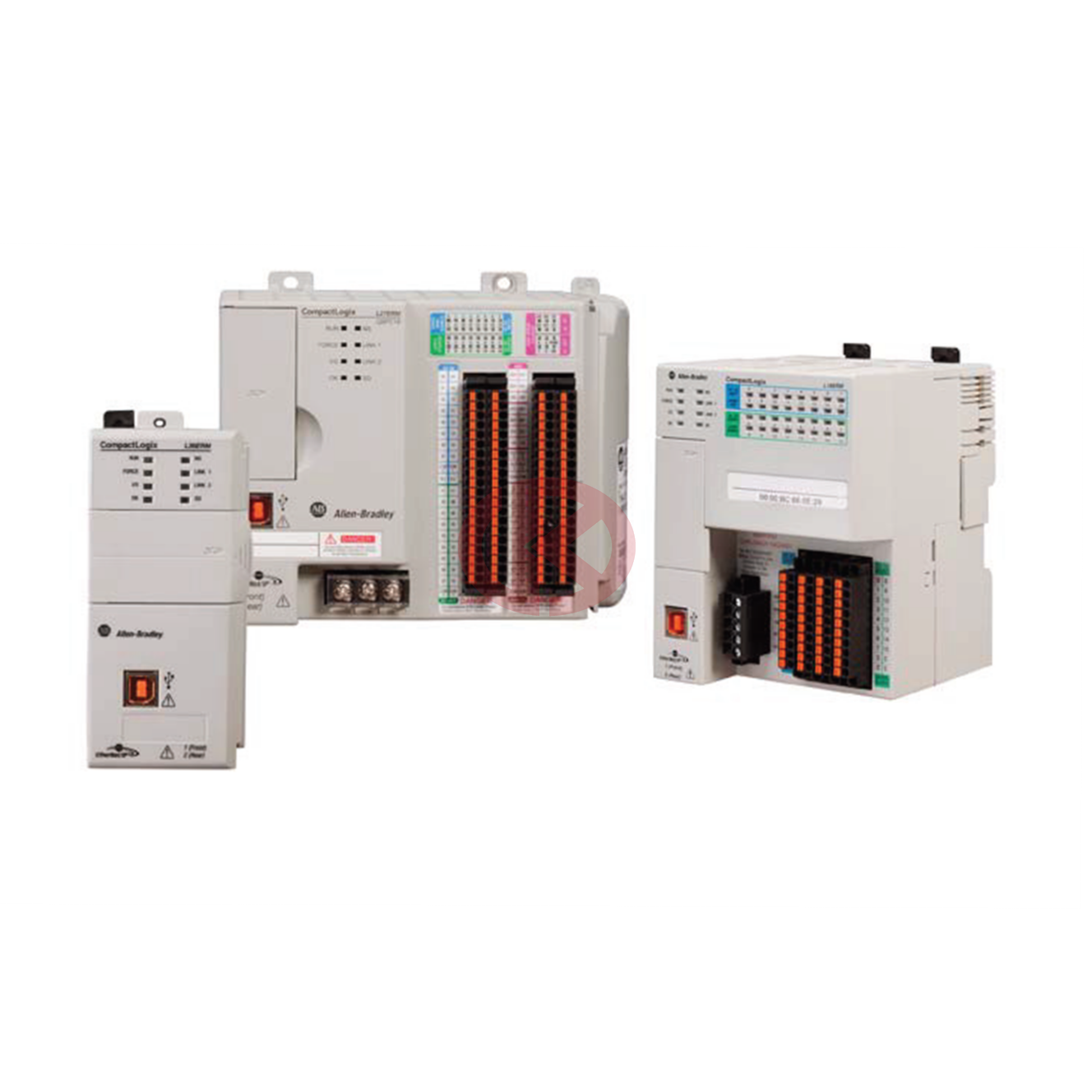

The CompactLogix system is designed to provide a Logix solution for small and mid-size applications. Typically, these

applications are machine-level control applications. A simple system can consist of a standalone controller with a single bank of

I/O modules and DeviceNet communication. In a more complex system, add other networks, motion control, and safety

control. As part of the Integrated Architecture system, the CompactLogix controllers use the same programming software,

network protocol, and information capabilities as all Logix controllers, providing a common development environment for all

control disciplines.

• The CompactLogix 5370 L3 controllers deliver scalable, affordable control ideal for applications from small standalone

equipment to high-performance indexing tables, process skids, case packers and erectors, and packaging. The

CompactLogix 5370 L3 controllers also provide a truly integrated motion solution.

• The CompactLogix 5370 L2 controllers combine the power of the Logix architecture with the flexibility of Compact I/O.

From small standalone equipment to higher performance applications, these controllers are ideal for assembly

machines, hoisting systems, process skids, indexing tables, and packaging.

• The CompactLogix 5370 L1 controllers combine the power of the Logix architecture with the flexibility of POINT I/O. Ideal

for small to mid-size machines, these controllers offer value to customers looking for the benefits of Integrated

Architecture in a lower cost system.

1768 CompactLogix System

The 1768 CompactLogix system combines a 1768 backplane for communication and motion support and a 1769 backplane for

I/O support. The 1768 controller is designed for integrated motion, integrated safety, and more complex communication

requirements than the other CompactLogix controllers. The 1768 controller has one serial port. Add 1768 modules for motion

control, EtherNet/IP communication, and ControlNet communication.

The CompactLogix platform brings together the benefits of the

Logix platform— common programming environment,

common networks, common control engine—in a small

footprint with high performance. Combined with Compact I/O

modules, the CompactLogix platform is perfect for tackling

smaller, machine-level control applications, with or without

simple motion, with unprecedented power and scalability. A

CompactLogix platform is ideal for systems that require

standalone and system-connected control over EtherNet/IP,

ControlNet, or DeviceNet networks.

I/O Type Cat. No. Page Cat. No. Page

AC digital 1769-IA8I

1769-IA16

1769-IM12

1769-OA8

1769-OA16

DC digital 1769-IG16

1769-IQ16

1769-IQ16F

1769-IQ32

1769-IQ32T

1769-IQ6XOW4

1769-OB8

1769-OB16

1769-OB16P

1769-OB32

1769-OB32T

1769-OG16

1769-OV16

1769-OV32T

Contact 1769-OW8

1769-OW8I

1769-OW16 100

Analog 1769-IF4

1769-IF4I

1769-IF4XOF2

1769-IF4FXOF2F

1769-IF8

1769-IF16C

1769-IF16V

1769-IR6

1769-IT6

1769-OF2

1769-OF4

1769-OF4CI

1769-OF4VI

1769-OF8C

1769-OF8V

Specialty 1769-ARM

1769-ASCII

1769-BOOLEAN

1769-HSC
