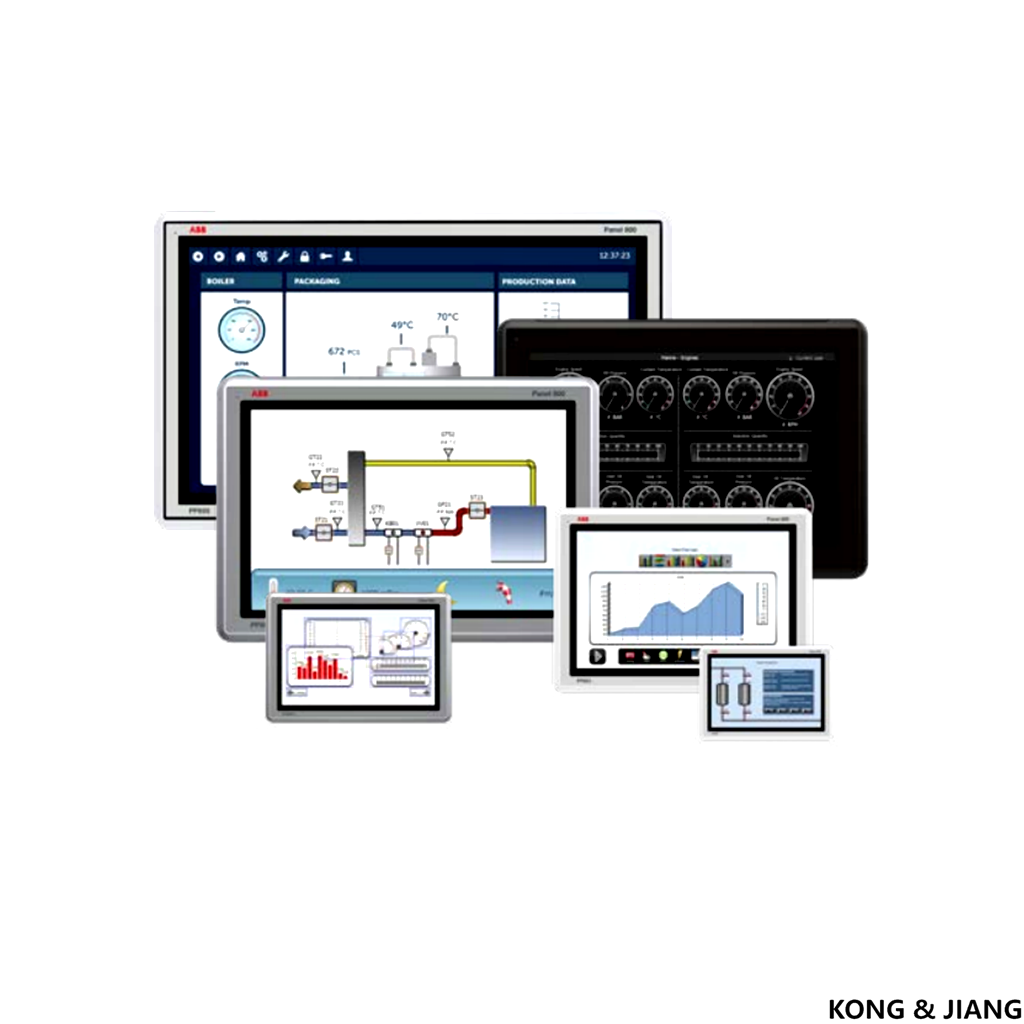

The Panel 800 family comprises of user-friendly, intuitive and ergonomic operator panels
that combine slim, space-saving dimensions with a comprehensive range of advanced
functions. Designed to make process automation easy, all panels are equipped with
advanced functionality for process and equipment control, maneuvered by just touching
the LCD display
Touchscreen panels with brilliant TFT/LED display colors and multi-protocol connectivity. The standard range of Panel 800 comprises of PP875, PP881, PP883, PP886 and PP895 that are easy-to use HMI with comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution graphics in TFT/LED display. Most models offer wide screen, high resolution display for increased efficiency and excellent operator interaction.
Features and benefits
Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering.
State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control.
Robust and reliable
Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -10° C to + 60° C with maximum 85% humidity.
Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
Try your application before you use it
Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it.General info
| Article number | 3BSE092978R1 |
| Category | Standard |
| Display type | Touch |
| Display size | 10.1" |
| Brightness | 500 cd/m² |
| Display resolution, ratio | 1024x600 pixels |
| Processor | ARM9 (1 GHz) |
| Main memory | 1 GB |
| External storage media | 2 GB SSD, 1.5 GB free for application storage
|
| Dimension WxHxD (mm) | 292 x 194 x 52 mm |
| Power supply | + 24 V DC (18 to 32 VDC) |
| Operating temperature | -10 °C to +60 °C |
PP875 3BSE092977
PP881 3BSE092978
PP883 3BSE092979
PP886 3BSE092980
PP895 3BSE092981
PP875M 3BSE092982
PP875H 3BSE092983
PP886M 3BSE092984
PP886R 3BSE092985
PP887H 3BSE092986
PP887S 3BSE092987
