Programmable Controller, Simatic System S7-1500/ET200MP
The SIMATIC S7-1500 is the further development of the SIMATIC S7-300 and S7-400
automation systems.
Through the integration of numerous new performance features, the S7-1500 automation
system offers the user excellent operability and the highest performance.
The new performance features are:
● Increased system performance
● Integrated Motion Control functionality
● PROFINET IO IRT
● Integrated display for machine-oriented operation and diagnostics
● STEP 7 language innovations with retention of proven functions
Interface Module 6ES7 155-5AA00-0AB0 6
Interface Module 6ES7 155-5BA00-0AB0 6A
Interface Module 6ES7 155-5AA00-0AC0 6B
Interface Module 6ES7 155-5AA00-0AA0 6C
Interface Module 6ES7 155-5AA01-0AB0 6D
Power Supply Module 6ES7 505-0KA00-0AB0 7
Power Supply Module 6ES7 507-0RA00-0AB0 7A, 7B, 7C
Power Supply Module 6ES7 505-0RA00-0AB0 7D, 7E, 7F
Power Supply Module 6ES7 505-0RB00-0AB0 7G
Digital Input Module 6ES7 521-1BH00-0AB0 8, 8-1
Digital Input Module 6ES7 521-1BH50-0AA0 8A
Digital Input Module 6ES7 521-1BL00-0AB0 9, 9-1
Digital Input Module 6ES7 521-1FH00-0AA0 9A
Digital Input Module 6ES7 521-1BH10-0AA0 9B
Digital Input Module 6ES7 521-1BL10-0AA0 9C
Digital Input Module 6ES7 521-7EH00-0AB0 9D
Digital Output Module 6ES7 522-1BH00-0AB0 10
Digital Output Module 6ES7 522-1BH01-0AB0 10A
Digital Output Module 6ES7 522-1BL00-0AB0 11
Digital Output Module 6ES7 522-1BF00-0AB0 11A, 11A-1
Digital Output Module 6ES7 522-5FF00-0AB0 11B
Digital Output Module 6ES7 522-5HF00-0AB0 11C
Digital Output Module 6ES7 522-1BL10-0AA0 11D
Digital Output Module 6ES7 522-1BH10-0AA0 11E
Digital Output Module 6ES7 522-5HH00-0AB0 11F
Digital Output Module 6ES7 522-5FH00-0AB0 11G
Digital Output Module 6ES7 522-1BL01-0AB0 11H
Digital Output Module 6ES7 522-5EH00-0AB0 11I
Analog Input Module 6ES7 531-7KF00-0AB0 12, 12-1
Analog Input Module 6ES7 531-7NF10-0AB0 12A
Analog Input Module 6ES7 531-7QD00-0AB0 12B
Analog Input Module 6ES7 531-7PF00-0AB0 12C
Analog Input Module 6ES7 531-7NF00-0AB0 12D`
Analog Output Module 6ES7 532-5HD00-0AB0 13, 13-1
Analog Output Module 6ES7 532-5HF00-0AB0 13A
Analog Output Module 6ES7 532-5NB00-0AB0 13B
Analog Output Module 6ES7 532-5ND00-0AB0 13C
Communication Modules 6ES7 540-1AB00-0AA0 14
6ES7 541-1AB00-0AB0
6ES7 540-1AD00-0AA0 15
6ES7 541-1AD00-0AB0
Technology Module 6ES7 550-1AA00-0AB0 16
Technology Module 6ES7 551-1AB00-0AB0 16A
Technology Module 6ES7 553-1AA00-0AB0 16B
*
CPU Modules 6ES7 511-1AK00-0AB0 17
6ES7 511-1AK01-0AB0
6ES7 513-1AL00-0AB0
6ES7 513-1AL01-0AB0
6ES7 513-1RL00-0AB0
6ES7 511-1FK00-0AB0
6ES7 511-1FK01-0AB0
6ES7 513-1FL00-0AB0
6ES7 513-1FL01-0AB0
CPU Modules 6ES7 511-1AK02-0AB0 17A
6ES7 511-1FK02-0AB0

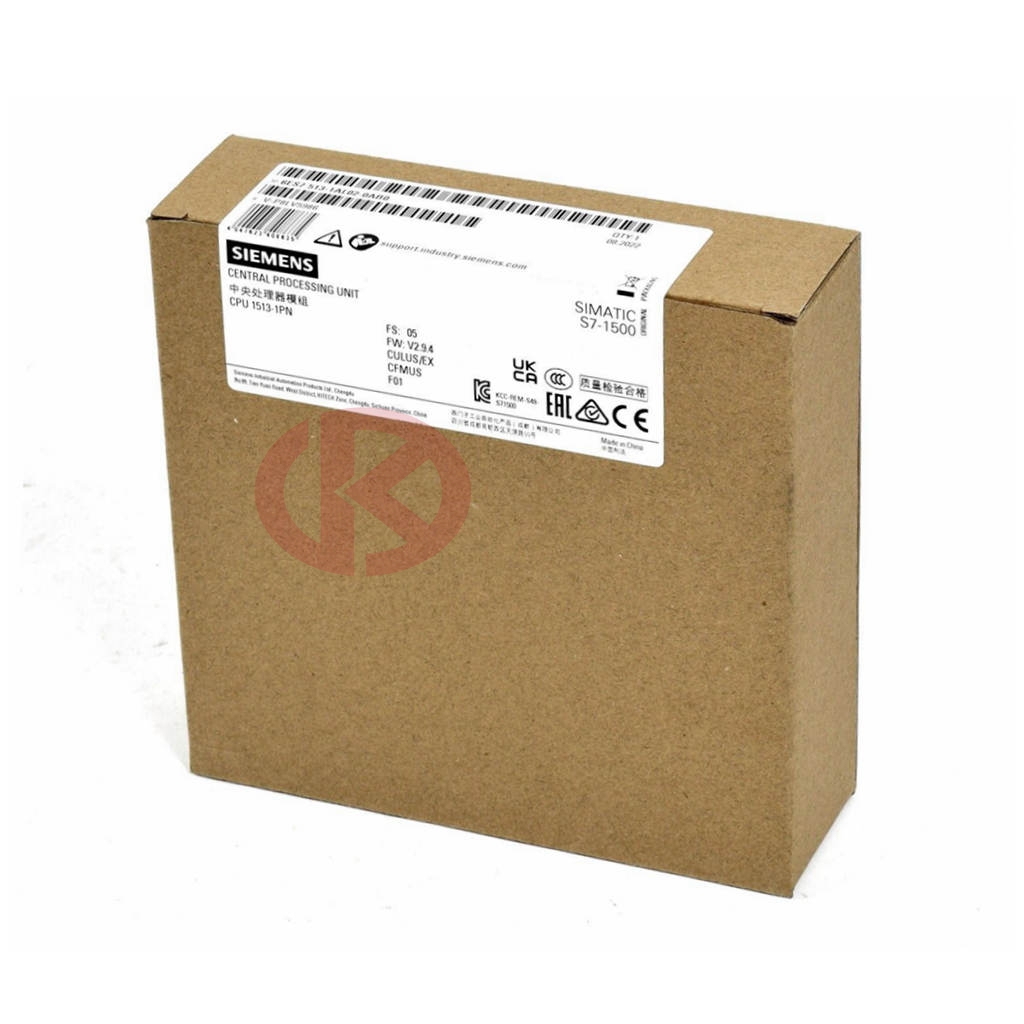

6ES7 513-1AL02-0AB0
6ES7 513-1FL02-0AB0
CPU Modules 6ES7 516-3AN00-0AB0 18
6ES7 516-3AN01-0AB0
6ES7 516-3FN00-0AB0
6ES7 516-3FN01-0AB0
CPU Modules 6ES7 515-2AM00-0AB0 18A
6ES7 515-2AM01-0AB0
6ES7 515-2RM00-0AB0
6ES7 515-2FM00-0AB0
6ES7 515-2FM01-0AB0
CPU Modules 6ES7 517-3AP00-0AB0 18B
6ES7 517-3FP00-0AB0
CPU Module 6ES7 511-1CK00-0AB0 18C
CPU Module 6ES7 511-1CK01-0AB0 18C-1
CPU Module 6ES7 512-1CK00-0AB0 18D

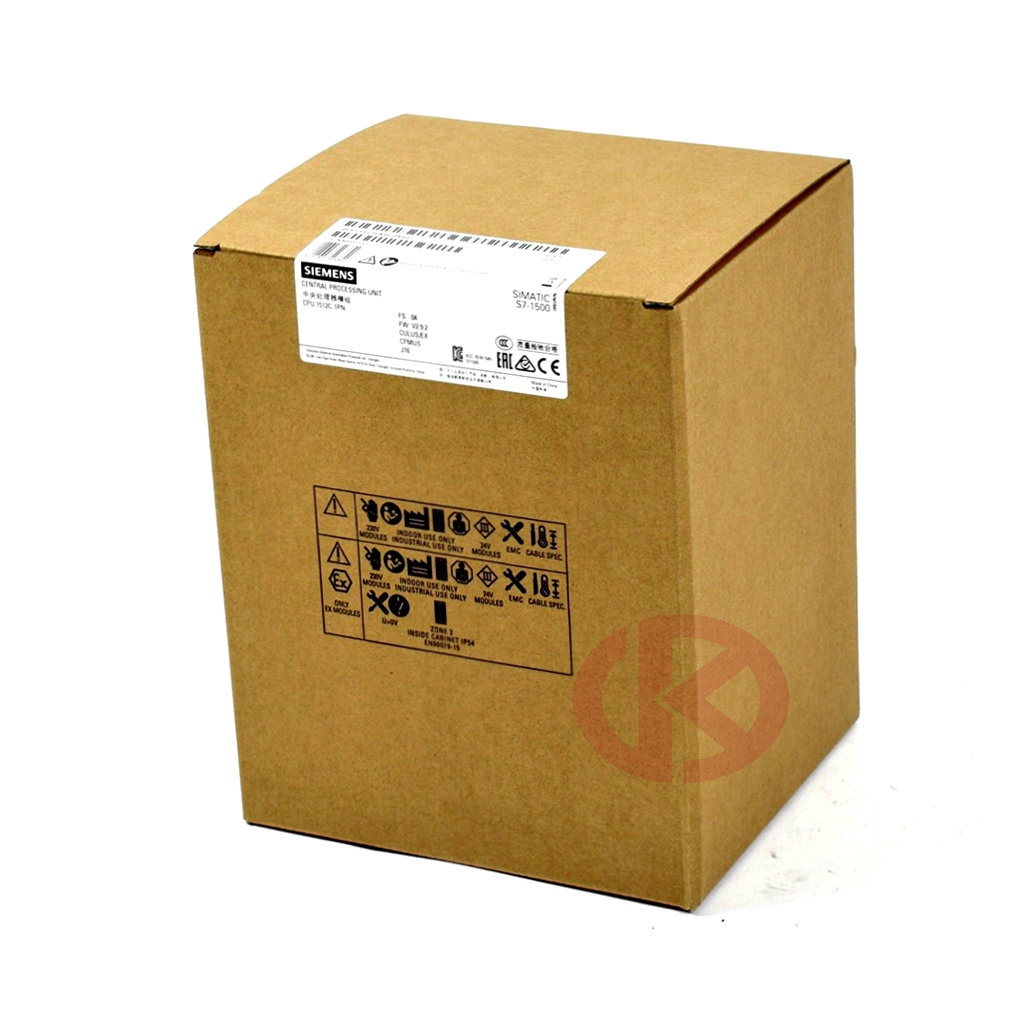

CPU Module 6ES7 512-1CK01-0AB0 18D-1
CPU Module 6ES7 518-4AX00-1AB0 18E
6ES7 518-4FX00-1AB0
Accessory 6ES7 592-1AM00-0XB0 19
Digital Input/Output Module 6ES7 523-1BL00-0AA0 20
Analog Input/Output Module 6ES7 534-7QE00-0AB0 21
TM Timer Digital Input/Output Module 6ES7 552-1AA00-0AB0 22
F-Digital Input Module 6ES7 526-1BH00-0AB0 23
F-Digital Output Module 6ES7 526-2BF00-0AB0 24
