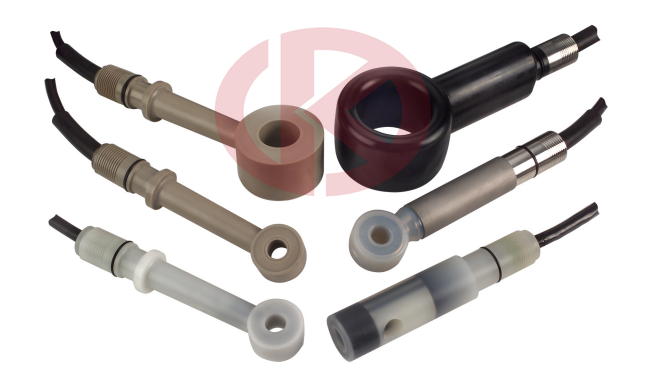

871EC Series Electrodeless Conductivity Sensors and Accessories

Foxboro 871EC Electrodeless Conductivity Sensors, in conjunction with a variety of supporting sensor accessories, provide fouling-resistant measurements in all types of process liquids. Because of the electrodeless technique and innovative sensor design, years of continuous operation and meaningful indication of solution conductivity will be realized. INTRODUCTION The electrodeless conductivity sensors measure an induced current in a loop of solution. Two or three(1) toroidally wound coils are encapsulated in close proximity within the sensor which is immersed in the solution. An ac signal, applied to one toroidal coil, induces a current in the second coil, which is directly proportional to the conductance of the solution. This current is the input to a Foxboro 875EC Intelligent Analyzer, an 870ITEC Intelligent Transmitter, an 870EC Analog Transmitter, or an 873EC and 873AEC Electrochemical Analyzer, all used for electrodeless conductivity measurement. HIGH SENSITIVITY Through the use of innovative design technology(1), Invensys Foxboro has extended the range of electrodeless conductivity measurement capability. Whereas previous sensors were limited to ranges of 1000 µS/cm minimum full scale, Foxboro large bore PEEK sensors can be ranged as low as 0 to 50 µS/cm, with sensitivities as low as approximately 8 µS/cm. This permits measurements in low conductivity applications such as boiler feedwater or steam condensate, where heretofore the electrodeless technique was not sufficiently sensitive.

PEEK MATERIAL SOLVES APPLICATION PROBLEMS PEEK (Polyetheretherketone) is a thermoplastic material with superb strength and chemical resistance properties over a wide range of process temperatures and pressures. PEEK sensors are available in both small and large bore configurations; each type is capable of measuring conductivity at temperatures up to 200°C (392°F). WIDE APPLICATION FLEXIBILITY The 871EC Electrodeless Conductivity Sensors are available in a number of configurations and materials suitable for a variety of conditions that may be present in highly corrosive process solutions. These process conditions may include fouling by oil, algae or suspended impurities, abrasive slurry erosion, or metallic corrosion in highly active chemical solutions (e.g., caustics, saline solutions, and acids). Refer to Table 1 for approximate conductivity values of many common solutions. VERY RELIABLE DESIGN Foxboro PEEK sensors utilize a proprietary sensor head sealing technique which obviates the need for physical seals such as O-rings or epoxies. This results in a sensor of extraordinary integrity and virtually impervious to leakage from process fluids. EASY MAINTENANCE All sensors incorporate short passages and sufficiently large bores to virtually eliminate the difficulties caused by the buildup of process material and electrode polarization that is experienced with direct contact electrodes. Because of the materials of construction and innovative design, sensor maintenance is typically negligible. VERSATILE SENSOR MOUNTINGS Modular sensor design offers a choice of several different mounting methods. In-line installations are achieved via threaded bushings, flanges, and ball valve assemblies. A process seal is achieved by the sensor O-ring sealing against the bushing or flange inside diameter. All sensors may also be submersed by using a standpipe and coupling. Refer to Sensor Mounting Arrangements section further in this document for typical sensor mountings. INTEGRAL TEMPERATURE SENSING Sensors have an integral temperature element (either a thermistor or an RTD) for the monitoring of process solution temperature. Encapsulating the thermistor or RTD (resistance temperature detector) ensures that it is located in intimate thermal contact with the process solution being monit。

871-EC-REO 1826665 FOXBORO
