Operating and environmental conditions

Voltages

24 V DC Process and supply voltage 24 V DC (+ 20 %, - 15 %, without ripple)

absolute limits 19.2 V ... 30 V incl. ripple

ripple ≤ 5 %

120 V AC Line voltage 120 V AC (+ 10 %, - 15 %)

frequency 50 Hz (+ 5 %, - 5 %) or 60 Hz (+ 5 %, - 5 %)

230 V AC Line voltage 230 V AC (+ 10 %, - 15 %)

frequency 50 Hz (+ 5 %, - 5 %) or 60 Hz (+ 5 %, - 5 %)

Allowed interruptions of power supply

DC supply interruption ≤ 10 ms, time between 2 interruptions ≥ 1 s

AC supply interruption ≤ 0.5 periods,

time between 2 interruptions ≥ 1 s

Temperature

operating 0 °C ... + 55 °C

storage - 25 °C ... + 75 °C

transport - 25 °C ... + 75 °C

Humidity 50...95 %, without condensation

Air pressure operation ≥ 800 hPa/≤ 2000 m

storage ≥ 660 hPa/≤ 3500 m

Creepage distances and clearances

The creepage distances and clearances meet Overvoltage category II, pollution degree 2

Insulation test voltages

230 V circuits (mains, 230 V inputs/outputs) against

other circuitry 2500 V

120 V circuits (mains) against other circuitry 1500 V

24 V circuits (supply, 24 V inputs/outputs),

when electrically isolated against other circuitry 500 V

CS31 bus against other circuitry 500 V

Electromagnetic compatibility

• Immunity

against electrostatic discharge (ESD) according to EN 61000-4-2

- electrostatic voltage in case of air discharge 8 kV

- electrostatic voltage in case of contact discharge 4 kV

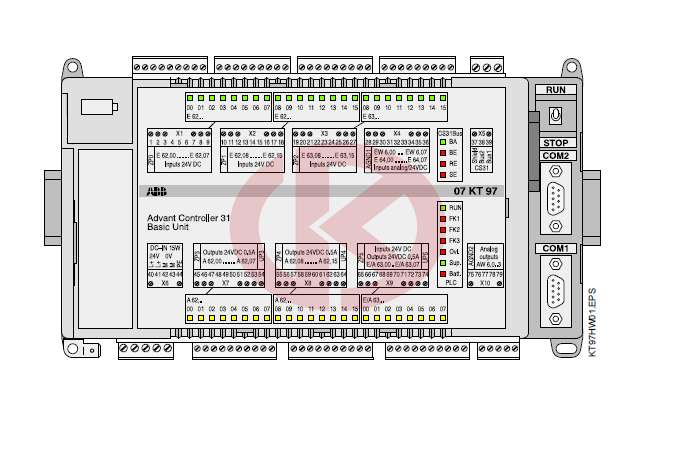

Basic Unit 07 KT 97

Basic unit with max. 480 kB user program

+ 256 kB user data, CS31 system bus

The basic unit 07 KT 97 R200 is the standard device for all applications. In addition, there are basic units with reduced

performance (e.g. 07 KT 95 or 07 KT 96) as well as ones with extended performance (e.g. 07 KT 97 R260 with

ARCNET connection, 07 KT 97 R0220 with PROFIBUS connection and 07 KT 97 R0262 with both ARCNET and

PROFIBUS connection). A comparison table is given on page 3. This document describes the basic unit 07 KT 97

R200 and then adds the data sheets of the other devices which only show the differences.

Functionality of the basic units 07 KT 97

User program 480 kB

User data 256 kB (Flash EPROM)

Digital inputs 24 in 3 groups of 8 each, electrically isolated

Digital outputs 16 transistor outputs in 2 groups of 8 each, electrically isolated

Digital inputs/outputs 8 in 1 group, electrically isolated

Analog inputs 8 in 1 group, individually configurable to 0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA,

4...20 mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs

Analog outputs 4 in 1 group, individually configurable to 0...10 V, 0...20 mA, 4...20 mA

Serial interfaces COM1, COM 2 as MODBUS interfaces and for programming and test functions

Parallel interfaces for

connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable)

System bus interface CS31

Integrated couplers see next page

High-speed counter integrated, many functions configurable

Real-time clock integrated

SmartMedia Card memory medium for operating system, user program and user data

LED displays for signal conditions, operating statuses and error messages

Power supply voltage 24 V DC

Data backup with lithium battery 07 LE 90

Programming software 907 AC 1131 18144100983

Basic unit 07 KT 97 R0100 Order No. GJR5 2530 00 R0100

Basic unit 07 KT 97 R0200 Order No. GJR5 2530 00 R0200

Basic unit 07 KT 97 R0120 (+ PROFIBUS-DP) Order No. GJR5 2530 00 R0120

Basic unit 07 KT 97 R0220 (+ PROFIBUS-DP) Order No. GJR5 2530 00 R0220

Basic unit 07 KT 97 R0160 (+ ARCNET) Order No. GJR5 2530 00 R0160

Basic unit 07 KT 97 R0260 (+ ARCNET) Order No. GJR5 2530 00 R0260

Basic unit 07 KT 97 R0162 (+ ARCNET + PROFIBUS-DP) Order No. GJR5 2530 00 R0162

Basic unit 07 KT 97 R0262 (+ ARCNET + PROFIBUS-DP) Order No. GJR5 2530 00 R0262

Basic unit 07 KT 97 R0270 (+ Ethernet) Order No. GJR5 2530 00 R0270

Basic unit 07 KT 97 R0272 (+ Ethernet + PROFIBUS-DP) Order No. GJR5 2530 00 R0272

Basic unit 07 KT 97 R0276 (+ Ethernet + ARCNET) Order No. GJR5 2530 00 R0276

Basic unit 07 KT 97 R0277 (+ Ethernet + Ethernet) Order No. GJR5 2530 00 R0277

Basic unit 07 KT 97 R0278 (+ Ethernet + CANopen) Order No. GJR5 2530 00 R0278
