REXROTH ECODRIVE PPC Drive Controllers

REXROTH ECODRIVE PPC Drive Controllers

The PPC-R unit is a powerful controller in a small size in IP 20 rating. It is

a general-purpose platform that works as a PLC or as an NC controller,

depending on the application and the loaded software.

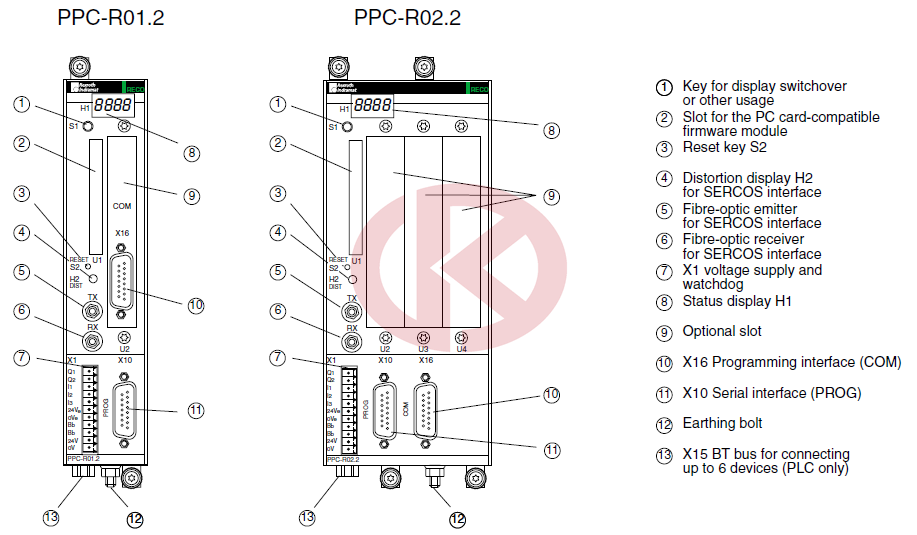

The PPC-R unit exists with two enclosure versions of different width. A

single-width version and a double-width version.

The two interfaces that are available on the controller are fully connected

according to the Indramat standard (SIS = Serial Indramat Interface). The

data transfer type (function) is only selected by the related application

(RS232/RS422/RS485). With PPC-R01, the COM interface is brought out

via a separate slot plate if this has not yet been assigned for a different

purpose (by the PC/104 Field bus, for example).

Furthermore, the PPC-R unit has a BT bus (operator input terminal bus)

that permits application-related operator input terminals (BTM15/16,

BTA20, etc.) to be used. This is possible with a cable length of up to

50 m.

Artisan

Installing the module carriers

To install the RMB02.2-04 module carrier, you must latch it onto a DIN rail

TS 35x27x15 and secure it with a retaining screw.

Up to four RMB02.2-04 module carriers can be installed side by side. The

PPC-R must be in slot 0 if it shall be able to control the RECO bus. Slot

addressing requires the DIP switches on the bus boards of the RMB02.2-

04 module carriers to be configured (Fig. 1-9: Setting the slot address).

The dual carrier RMB02.2-02 is used if the PCR-R shall be used on its

own without RECO bus.
