  • ABB PP836 PP836A Panel 800 HMI人机界面模块
    ❤ Add to collection
  • ABB PP836 PP836A Panel 800 HMI人机界面模块

    ABB HMI PP836 fault detection and maintenance service

    • U.S.$0.00
      U.S.$96856.00
      U.S.$0.00
      U.S.$0.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.00KG
    • Quantity:
    • (Inventory: 3)
Description

ABB HMI PP836 fault detection and maintenance service


ABB HMI PP836 fault detection and maintenance service

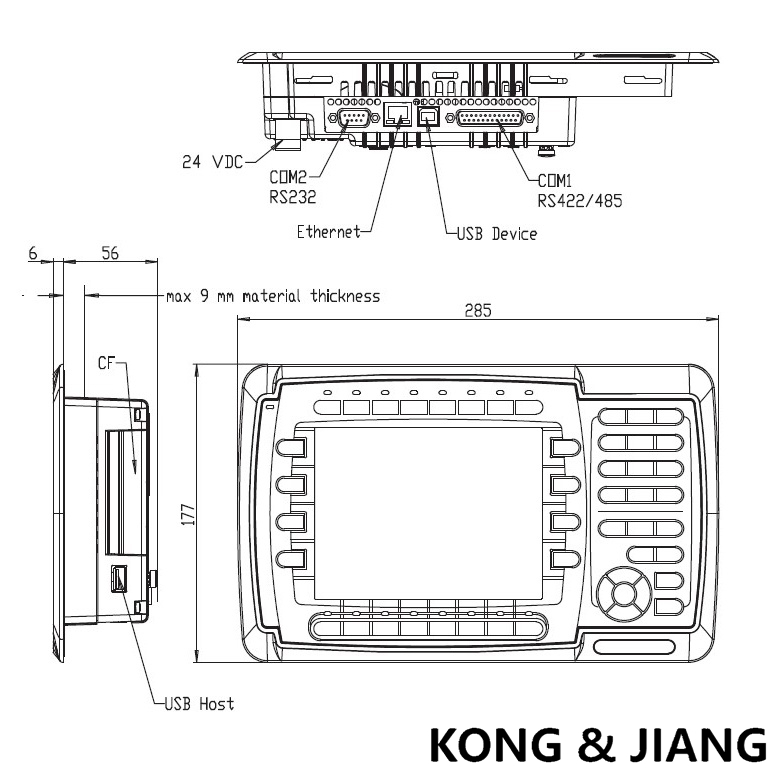

Parameter PP836 PP836A

Front panel, W x H x D 285 x 177 x 6 mm

Mounting depth 56 mm (156 mm including clearance)

Front panel seal IP 66

Rear panel seal IP 20

Keyboard material Membrane switch keyboard with metal domes. Overlay film of Autotex

F157 * with print on reverse side. 1 million operations.

Reverse side material Powder-coated aluminum

Weight 1.4 kg

Serial port

RS422/RS485

25-pin D-sub contact, chassis-mounted female with

standard locking screws 4-40 UNC.

Serial port RS232C 9-pin D-sub contact, male with standard locking screws 4-40 UNC.

Ethernet Shielded RJ 45

USB Host type A (USB 1.1), max output current 500mA

Device type B (USB 1.1)

CF-slot Compact flash, type I and II

Flash memory for

application

12 MB (incl. fonts)

Real time clock ±20 PPM + error because of ambient temperature and supply

voltage. Total maximum error: 1 min/month at 25 °C

Temperature coefficient: -0.034±0.006 ppm/°C2
