Din rail program Programmable logic controller
Common functions
• Programmable controller for commercial and industrial use
• 34 pre-programmed function blocks with special control
functions that can be used up to 200 times
• Direct programming of even complex Boolean functions
in one function module
• Programming, editing and modifying on the unit itself via
8 keys without interface cable
• Backlit LCD with operator guidance in 4 x 12 character text
• Input and output switching status display
• Process variable display (MMI function)
• Assignment of programmed functions on front keys
• Internal EEPROM memory for max. 200 function blocks
(5000 bytes)
• Optional plug-in EEPROM for program transfer or dual
programming of internal/plugged-in EEPROM
• 3-level password protection
• Realtime year clock with 1,000 switching times
• Graphical programming software for Windows 95/98/NT/
2000/ME/XP with detailed online Help documentation
• Programming of the function blocks via “drag and drop”
• Online/offline program simulation on screen
• Remote control/remote monitoring possible via modem or
GSM modem
• Transmission of SMS, email or fax

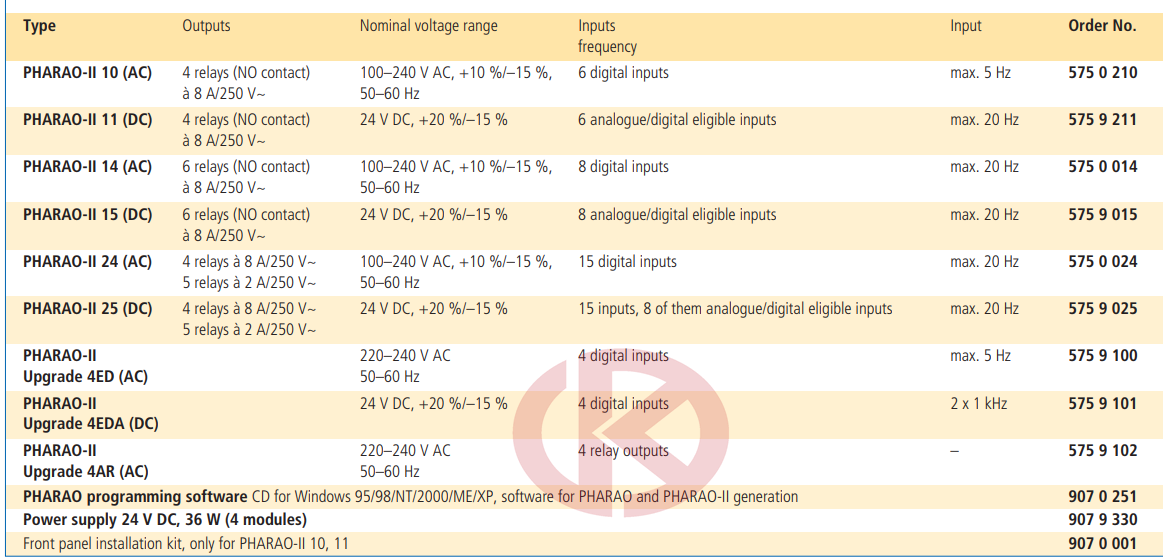

PHARAO-II 10 (AC)
• Rated voltage 100–240 V~
• 6 digital inputs e.g. for buttons, brightness and
temperature switches
• 4 Relay outputs 8 A/250 V~
PHARAO-II 11 (DC) as before, but
• Rated voltage 24 V DC
• 6 inputs digital/analog selectable

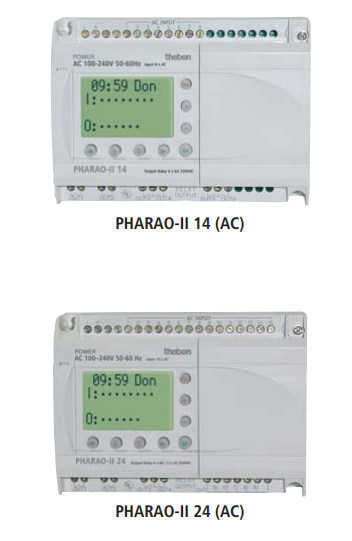

PHARAO-II 14 (AC)
• Nominal voltage 100–240 V~
• 8 digital inputs e.g. for keys, brightness and temperature
switches
• 6 relay outputs 8 A/250 V~
PHARAO-II 24 (AC)
• Nominal voltage 100–240 V~
• 15 digital inputs e.g. for keys, brightness and temperature
switches
• 9 relay outputs: 4 x 8 A/250 V~, 5 x 2 A/250 V~
PHARAO-II 15 (DC)
• Nominal voltage 24 V DC
• 8 inputs digital/analogue selectable
• 6 relay outputs 8 A/250 V~
PHARAO-II 25 (DC)
• Nominal voltage 24 V DC
• 15 inputs, including 8 digital/analogue selectable
• 9 relay outputs: 4 x 8 A/250 V~, 5 x 2 A/250 V~
PHARAO-II 4EDA (DC)
• Upgrade by 4 digital (24 V DC) inputs 2 x 1 kHz counter
inputs PHARAO-II 4ED (AC)
• Upgrade by 4 digital inputs (220 V AC–240 V AC)
PHARAO-II 4AR (AC)
• 4-channel relay output upgrade with 2 A/250 V AC
